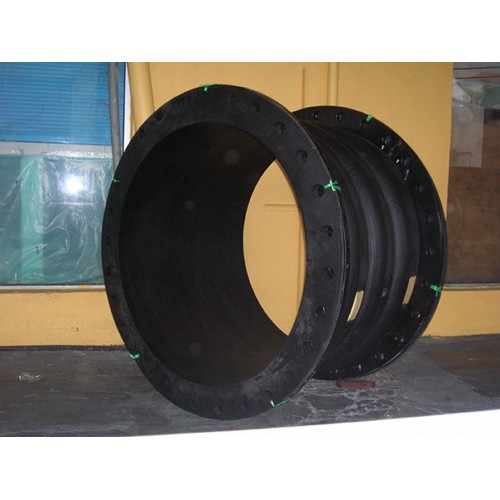

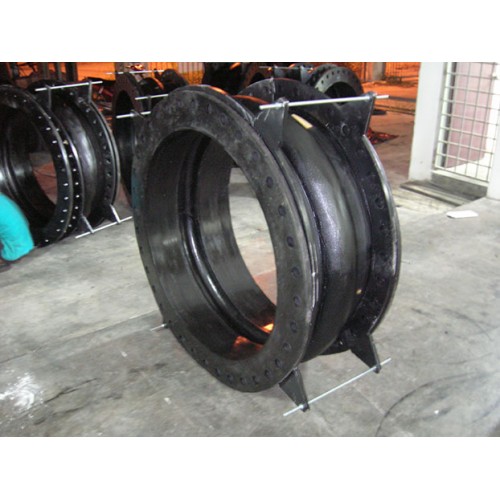

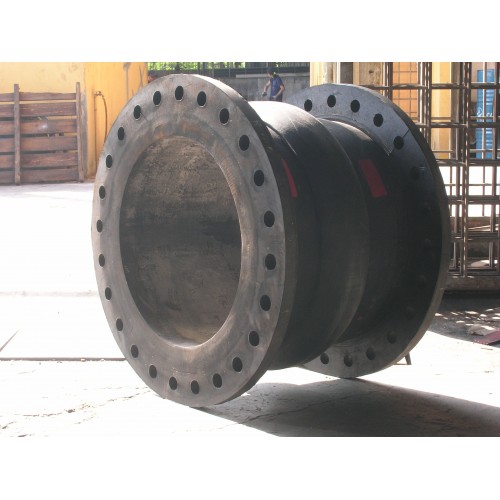

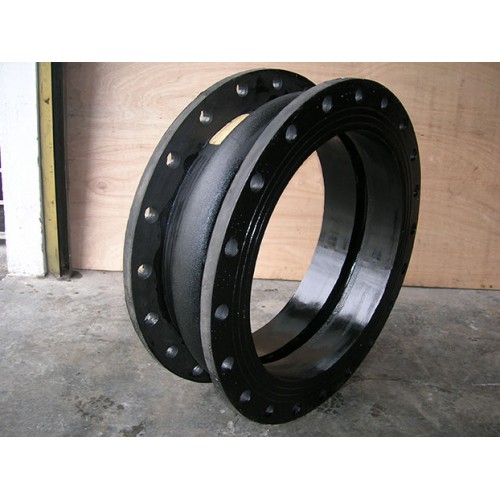

Product Name : HAND BUILT BELLOW SINGLE ARCH / DOUBLE ARCH

Product Code :

Availability : Yes

Product description:

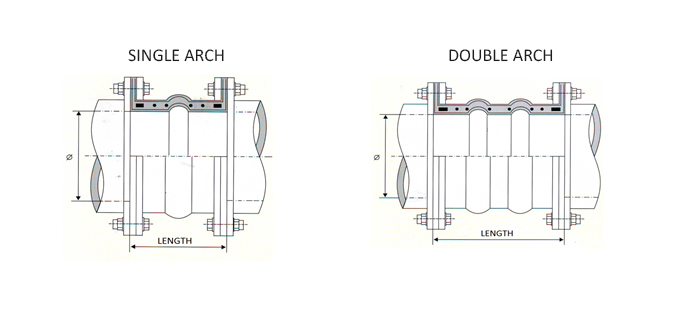

Nominal Dia. (mm)	1 ARCH
Nominal Dia. (mm)	L1 mm	Eccentricity (mm)	Elongation (mm)	Compression (mm)
25	150	20	15	20
32	150	20	15	20
40	150	20	15	20
50	150	20	15	20
65	150	20	15	20
80	150	20	20	20
100	200	20	20	20
125	200	20	20	20
150	200	25	20	20
200	200	25	20	20
250	250	25	20	20
300	250	25	20	20
350	250	25	25	25
400	250	25	25	25
450	250	25	25	25
500	300	25	25	25
600	300	25	25	25
700	300	25	25	25
800	300	25	25	25
900	300	25	25	25
1000	300	25	25	25
1100	300	25	25	25
1200	300	25	25	25
1350	300	25	25	25
1400	350	25	25	25
1500	350	25	25	25

Nominal Dia. (mm)	2 ARCH
Nominal Dia. (mm)	L2 mm	Eccentricity (mm)	Elongation (mm)	Compression (mm)
25	250	75	30	45
32	250	75	30	45
40	250	75	30	45
50	250	75	30	45
65	250	75	30	45
80	300	75	30	45
100	300	75	30	45
125	300	75	30	45
150	300	75	30	45
200	300	75	30	45
250	300	75	30	45
300	300	75	40	50
350	350	75	40	50
400	350	75	40	50
450	350	75	40	50
500	350	75	40	50
600	400	50	40	50
700	400	50	40	50
800	400	50	40	50
900	400	50	40	50
1000	450	50	40	50
1100	450	50	40	50
1200	450	50	40	50
1350	450	50	40	50
1400	450	50	40	50
1500	450	50	40	50

Nominal Dia. (mm)	1 ARCH
Nominal Dia. (mm)	L1 mm	Eccentricity (mm)
25	150	20
32	150	20
40	150	20
50	150	20
65	150	20
80	150	20
100	200	20
125	200	20
150	200	25
200	200	25
250	250	25
300	250	25
350	250	25
400	250	25
450	250	25
500	300	25
600	300	25
700	300	25
800	300	25
900	300	25
1000	300	25
1100	300	25
1200	300	25
1350	300	25
1400	350	25
1500	350	25

Nominal Dia. (mm)	1 ARCH
Nominal Dia. (mm)	L1 mm	Elongation (mm)
25	150	15
32	150	15
40	150	15
50	150	15
65	150	15
80	150	20
100	200	20
125	200	20
150	200	20
200	200	20
250	250	20
300	250	20
350	250	25
400	250	25
450	250	25
500	300	25
600	300	25
700	300	25
800	300	25
900	300	25
1000	300	25
1100	300	25
1200	300	25
1350	300	25
1400	350	25
1500	350	25

Nominal Dia. (mm)	1 ARCH
Nominal Dia. (mm)	L1 mm	Compression (mm)
25	150	20
32	150	20
40	150	20
50	150	20
65	150	20
80	150	20
100	200	20
125	200	20
150	200	20
200	200	20
250	250	20
300	250	20
350	250	25
400	250	25
450	250	25
500	300	25
600	300	25
700	300	25
800	300	25
900	300	25
1000	300	25
1100	300	25
1200	300	25
1350	300	25
1400	350	25
1500	350	25

Nominal Dia. (mm)	2 ARCH
Nominal Dia. (mm)	L2 mm	Eccentricity (mm)
25	250	75
32	250	75
40	250	75
50	250	75
65	250	75
80	300	75
100	300	75
125	300	75
150	300	75
200	300	75
250	300	75
300	300	75
350	350	75
400	350	75
450	350	75
500	350	75
600	400	50
700	400	50
800	400	50
900	400	50
1000	450	50
1100	450	50
1200	450	50
1350	450	50
1400	450	50
1500	450	50

Nominal Dia. (mm)	2 ARCH
Nominal Dia. (mm)	L2 mm	Elongation (mm)
25	250	30
32	250	30
40	250	30
50	250	30
65	250	30
80	300	30
100	300	30
125	300	30
150	300	30
200	300	30
250	300	30
300	300	40
350	350	40
400	350	40
450	350	40
500	350	40
600	400	40
700	400	40
800	400	40
900	400	40
1000	450	40
1100	450	40
1200	450	40
1350	450	40
1400	450	40
1500	450	40

Nominal Dia. (mm)	2 ARCH
Nominal Dia. (mm)	L2 mm	Compression (mm)
25	250	45
32	250	45
40	250	45
50	250	45
65	250	45
80	300	45
100	300	45
125	300	45
150	300	45
200	300	45
250	300	45
300	300	50
350	350	50
400	350	50
450	350	50
500	350	50
600	400	50
700	400	50
800	400	50
900	400	50
1000	450	50
1100	450	50
1200	450	50
1350	450	50
1400	450	50
1500	450	50

* AVAILABLE IN SIZE UP TO DN1800
