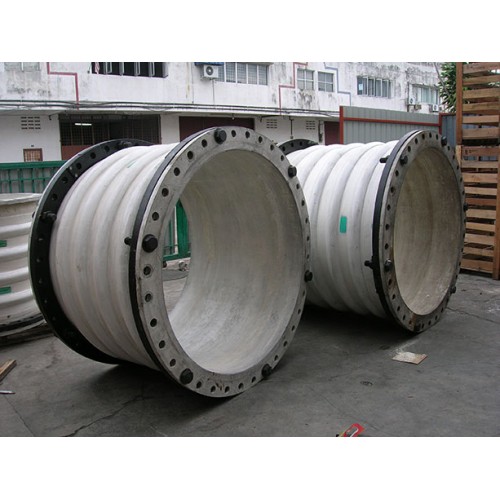

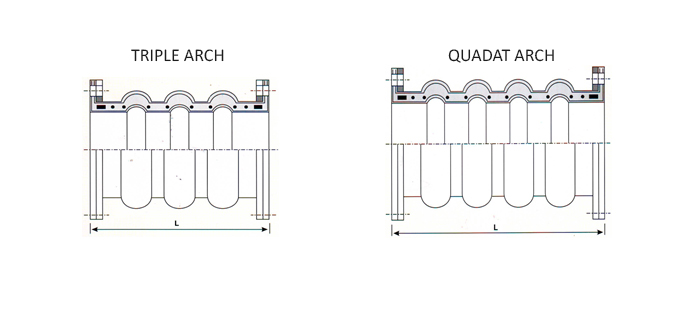

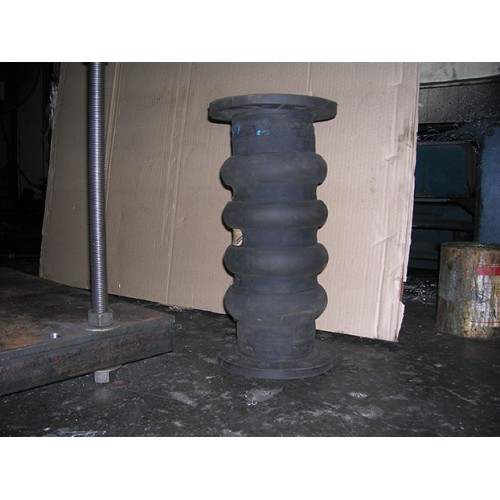

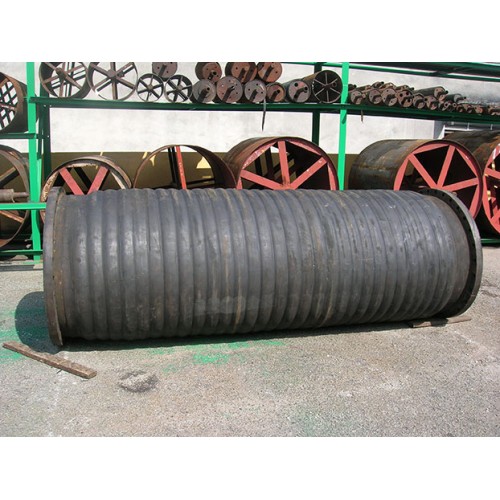

Product Name : HAND BUILT BELLOW TRIPLE ARCH/ QUADRAT ARCH

Product Code :

Availability : Yes

Product description:

Nominal Dia. (mm)	100mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Elongation (mm)	Compression (mm)
25	3	400	40	60
32	3	400	40	60
40	3	400	40	60
50	3	400	40	60
65	3	400	40	60
80	3	400	40	60
100	3	400	40	60
125	3	400	40	60
150	3	550	40	60
200	3	550	40	60
250	3	550	40	60
300	3	600	40	60
350	3	600	50	70
400	3	600	50	70
450	3	600	50	70
500	3	600	50	70
600	3	600	50	70
700	3	700	50	70
800	3	700	50	70
900	3	700	50	70
1000	3	750	50	70
1100	3	750	50	70
1200	3	750	50	70
1350	3	750	50	70
1400	3	750	50	70
1500	3	800	50	70

Nominal Dia. (mm)	200mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Elongation (mm)	Compression (mm)
25	4	500	40	60
32	4	500	40	60
40	4	500	40	60
50	4	500	40	60
65	4	500	40	60
80	4	500	40	60
100	4	500	40	60
125	4	500	40	60
150	4	650	40	60
200	4	650	40	60
250	4	650	40	60
300	4	700	40	60
350	4	700	50	70
400	4	700	50	70
450	4	700	50	70
500	4	700	50	70
600	4	700	50	70
700	4	800	50	70
800	4	800	50	70
900	4	800	50	70
1000	4	850	50	70
1100	4	850	50	70
1200	4	850	50	70
1350	4	850	50	70
1400	4	1000	50	70
1500	4	1000	50	70

Nominal Dia. (mm)	100mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Elongation (mm)
25	3	400	40
32	3	400	40
40	3	400	40
50	3	400	40
65	3	400	40
80	3	400	40
100	3	400	40
125	3	400	40
150	3	550	40
200	3	550	40
250	3	550	40
300	3	600	40
350	3	600	50
400	3	600	50
450	3	600	50
500	3	600	50
600	3	600	50
700	3	700	50
800	3	700	50
900	3	700	50
1000	3	750	50
1100	3	750	50
1200	3	750	50
1350	3	750	50
1400	3	750	50
1500	3	800	50

Nominal Dia. (mm)	100mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Compression (mm)
25	3	400	60
32	3	400	60
40	3	400	60
50	3	400	60
65	3	400	60
80	3	400	60
100	3	400	60
125	3	400	60
150	3	550	60
200	3	550	60
250	3	550	60
300	3	600	60
350	3	600	70
400	3	600	70
450	3	600	70
500	3	600	70
600	3	600	70
700	3	700	70
800	3	700	70
900	3	700	70
1000	3	750	70
1100	3	750	70
1200	3	750	70
1350	3	750	70
1400	3	750	70
1500	3	800	70

Nominal Dia. (mm)	200mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Elongation (mm)
25	4	500	40
32	4	500	40
40	4	500	40
50	4	500	40
65	4	500	40
80	4	500	40
100	4	500	40
125	4	500	40
150	4	650	40
200	4	650	40
250	4	650	40
300	4	700	40
350	4	700	50
400	4	700	50
450	4	700	50
500	4	700	50
600	4	700	50
700	4	800	50
800	4	800	50
900	4	800	50
1000	4	850	50
1100	4	850	50
1200	4	850	50
1350	4	850	50
1400	4	1000	50
1500	4	1000	50

Nominal Dia. (mm)	200mm ECCENTRICITY
Nominal Dia. (mm)	No. of Arch	L (mm)	Compression (mm)
25	4	500	60
32	4	500	60
40	4	500	60
50	4	500	60
65	4	500	60
80	4	500	60
100	4	500	60
125	4	500	60
150	4	650	60
200	4	650	60
250	4	650	60
300	4	700	60
350	4	700	70
400	4	700	70
450	4	700	70
500	4	700	70
600	4	700	70
700	4	800	70
800	4	800	70
900	4	800	70
1000	4	850	70
1100	4	850	70
1200	4	850	70
1350	4	850	70
1400	4	1000	70
1500	4	1000	70

* AVAILABLE IN SIZE UP TO DN1800
